Git Provider Authentication

Connecting CrossModel to a Git Repository

CrossModel supports connecting workspaces to remote Git repositories, allowing you to version control your data models and collaborate with your team. This article explains how authentication works with the supported Git providers: GitHub and Azure DevOps.

Cloning a Repository

When you clone a Git repository from within CrossModel, you will be prompted to enter credentials. The exact prompt depends on the Git provider:

Git Provider	Prompted for
GitHub	Username and password (PAT)
Azure DevOps	Password (PAT) only

In both cases, the password field expects a Personal Access Token (PAT) - not your regular account password.

Personal Access Tokens (PAT)

A Personal Access Token is a secure alternative to a password that grants access to a Git repository. Each provider has its own way of generating PATs.

GitHub

For GitHub, it is recommended to use a fine-grained personal access token. Fine-grained tokens allow you to scope permissions specifically to the repository you need, limiting potential exposure if the token is ever compromised.

To create a fine-grained token in GitHub:

Go to Settings > Developer settings > Personal access tokens > Fine-grained tokens
Click Generate new token
Set the Resource owner and select the specific repository
Grant the minimum required permissions (e.g. read/write access to Contents)
Copy the generated token and use it as the password when prompted in CrossModel

Azure DevOps

For Azure DevOps, generate a PAT from your User Settings in the Azure DevOps portal. When prompted by CrossModel, enter the PAT in the password field (no username is required).

How CrossModel Stores Credentials

Default behavior - in-memory cache

By default, CrossModel stores your PAT in memory for the duration of your session. The credential cache expires after 1 hour. Once the cache expires, CrossModel will prompt you to re-enter the PAT the next time it needs to authenticate with the remote repository.

This is the default behavior because it avoids persisting sensitive tokens to disk.

Persisting credentials in the workspace

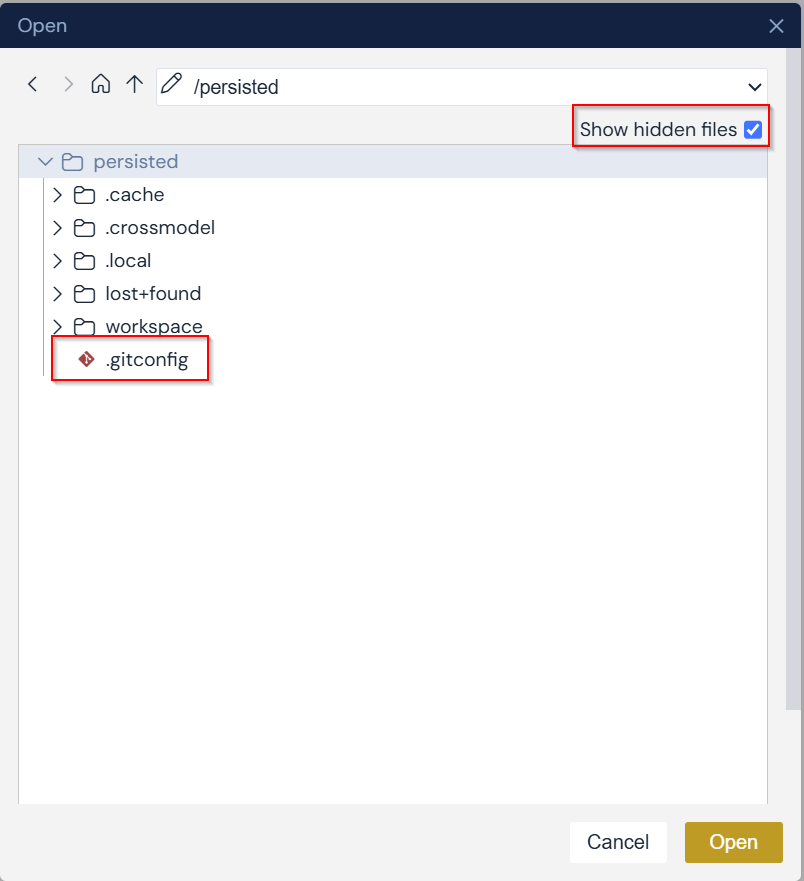

If you prefer not to re-enter your PAT after every hour, you can instruct Git to store the credential locally within your workspace. For this you need to open the .gitconfig file and change the credential helper setting. Go to File -> Open, check Show hidden files and navigate up untill you see the .gitconfig file:

In the file change the following line:

[credential]
    helper = cache --timeout=3600

to:

[credential]
    helper = store

Then save and close the file.

With this setting, Git will write your PAT to a plain text file in the workspace storage. The credential persists across session stops and starts - you will not need to re-enter the PAT until it expires or is revoked.

Security consideration

The credential.helper store option saves your PAT in plain text on the workspace filesystem. This is why it is not enabled by default. It is a user preference and an acceptable setup when using fine-grained PATs with limited repository scope, but be aware that anyone with access to the workspace storage can read the token.

Configuring your name and email addres

Before you can perform checkins to a repository, be sure to configure your name and email in the git configuration. You can configure your name and email by adding the following lines (with your actual name and email address instead of the placeholders) to the appropriate config file. See the table below to determine what config file to adjust. Be sure to check "show hidden files" in the file open dialog since the config files are hidden by default.

[user]
    name = Your name
    email = Your emailaddress

Configuration type	explanation	config file to adjust
global	applies to all git repositories used in this workspace	the `.gitconfig` file found in the `persisted` folder
local	applies only to the current git repository	the `config` file found in the `.git` folder in the repository root

Summary

Scenario	Behavior
Default (no configuration)	PAT cached in memory, expires after 1 hours
`credential.helper store` enabled	PAT stored in plain text in workspace, persists across sessions
Fine-grained PAT (GitHub)	Recommended - limits token scope to specific repo and permissions
